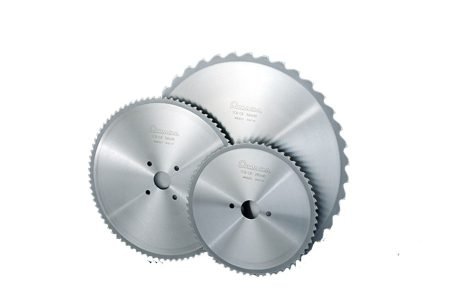

Highest grade high speed steel circular saw blade capable of cutting a wide variety of materials.
Edge material specifications
HSS edge material with high toughness is coated with TiAl (titanium aluminide).Target materials
Demonstrates high speed cutting and excellent durability for high tensile strength steel pipes. -
Selective cutting height
A cutting height setting can be selected from either 500mm (standard) or 800mm (optional) depending on the application and material size.
Selective blade size
A blade can be selected from either a standard 41 x 1.3mm blade or an optional 54 x 1.3mm blade.
Use of servo motor and linear guide
An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.
Automatic adjustment of guide position
Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.
Automatically adjustable wire brush
Wire brush contact is automatically adjusted in proportion to wear of wire brush.
A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.Excellent operability
The color display and touch panel facilitate operation.
The embedded CNC-Lite function automatically sets optimum cutting conditions.Back gauge (optional)
Using an optional back gauge can facilitate the alignment of marks.Permissible loading mass
In response to a trend toward larger materials, the machine table offers 2000kg loading mass (5000kg for VM-2500). -
Selective cutting height
A cutting height setting can be selected from either 600mm (standard) or 1000mm (optional) depending on the application and material size.Larger blade size
A larger blade size of 67mm x 1.6mm is used in contrast with conventional models.Further larger model
VM-6500 is available as a special model characterized by a table stroke of 6500mm and capability of cutting large materials.Use of servo motor and linear guide
An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.Automatic adjustment of guide position
Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.Automatically adjustable wire brush
Wire brush contact is automatically adjusted in proportion to wear of wire brush.
A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.Excellent operability
The color display and touch panel facilitate operation.
The embedded CNC-Lite function automatically sets optimum cutting conditions.Permissible loading mass
In response to a trend toward larger materials, the machine table offers 12000kg loading mass. -
Back gauge and end stopper
A combination of the NC back gauge and the end stopper facilitates setup for product dimension and accuracy and significantly reduces setup time. The NC back gauge can be easily positioned by entering dimensions through the numeric pad and pressing the START button for positioning.
Full open table
This vertical band saw can use a table in full open mode and facilitates material handling. Using the optional T-groove version allows a user to cut irregular-shaped materials.
Elimination of waste
This model developed with a focus on one of the objectives “effective use of materials” can cut the end of a material to 3mm and helps to save expensive materials without scraping as waste unlike in conventional practice.
Blade speed and cutting feed
Blade speed and cutting feed (table stroke) settings can be easily done by using the operation panel located in front of the machine. Cutting conditions optimum for the target materials can be quickly preset.
-
Name:Anti-flaming POF cable
Fiber optic core diameter:Φ1.0 mm
Fiber optic core material:PMMA
Outer diameter:Φ2.2 mm or custom -
Orbit-X Pullers are used for pulling & pushing of bearing & similar like applications.Orbit-X has variety of Pullers as per the requirement of application.
-
Feature: –Safe, only transmit light, non-conductive risk, no heat or electricity transfer. –Good flexibility, easy installation and maintenance, solid core, not easily to be broken. –No infrared transmission and ultraviolet rays, waterproof. –Good heat resistance, hight brightness.
-
1. Safe, transmit light only, no conductivity or heat transferring.
2. Being able to transmit visible light but not ultraviolet or infrared.
3. Easy installation and maintenance. -
-
DCA duplex fibre optic cable
LSZH, PVC, PE jacket
Simplex or duplex custom diameter
Low industrial attenuation -
Ideal for cost reduction and quality improvement!
EXP_ECO The “Eco Tube Expanders” is a rolling type tube expansion tool used for fixing tubes to tube sheets during the manufacturing process for heat exchangers.
With Sugino’s original metal surface improvement treatment, tube expansion can be performed without lubrication, achieving cost reduction and surface quality improvement at the same time.Special three-roller types: MB-W Type, CB-W Type, HB-W Type
Special five-roller type: CB-E5W Type -
Orbit-X Electric Torque Wrenches are operated by inbuilt Electric geared motor (single phase). Torque can be pre-set within the torque range provided by the model the pre-set torque gets delivered on the nut. Orbit-X has variety of Electric Torque Wrenches for various Square drive sizes, RPM & Torque.
-
-

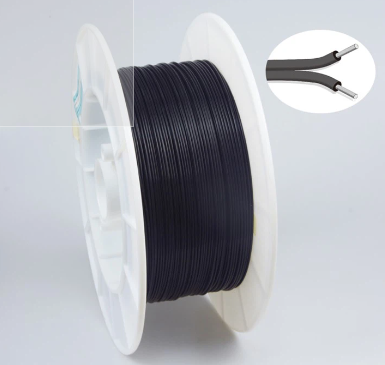

This 1.0mm/ 2.2mm POF cable is widely used in industrial communication and lighting designs, The black PE jacket protect the fiber in application, but also it can be removed to show the fiber for a lighting design. This general cable is very practical with a very good price . We can provide it with roll packing or cutting according to requested lengths.
-
end glow fiber optic are made of PMMA, which are widely used in lighting and decoration. The diameters of them are between 0.25mm~18mm. The optic fiber could be jacket with transparent and black PVC material according to different applications.
