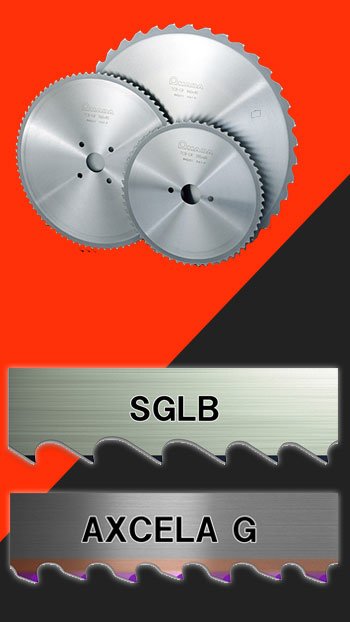

Band Saw Blades for Structural Steel
We offer a wide range of Band Saw Blades. The band saw blades below are designed exclusively for cutting structural steel.
-
Highest grade high speed steel circular saw blade capable of cutting a wide variety of materials.
Edge material specifications
HSS edge material with high toughness is coated with TiAl (titanium aluminide).Target materials
Demonstrates high speed cutting and excellent durability for high tensile strength steel pipes. -
Circular saw blade suitable for cutting structural steel pipes.
Edge material specifications
Uses cermet tips with excellent wear resistance and deposition resistance.Target materials
Circular saw blade with the number of teeth increased for stably cutting thin-walled pipes. -
Coated circular saw blade for cutting stainless steel materials, characterized by high wear resistance.
Edge material specifications
Carbide tips with high toughness is coated original.Target materials
Excellent in deposition resistance and wear resistance suited, and stable life and cutting quality is provided with cutting stainless steels due to the coating effect. -
Circular saw blade suitable for cutting stainless steel materials.
Edge material specifications
Uses carbide tips with high toughness.Target materials
Minimized adhesion of chips to prevent tooth chipping caused by chip inclusion with cutting stainless steels. -
Titanium-coated circular saw blade with excellent wear resistance.
Edge material specifications
Carbide tips with high toughness is coated original.Target materials
Both chipping resistance and wear resistance, stable life and cutting quality is provided with cutting structural carbon steels, structural alloy steels, pipes and special steel (except for stainless steels and heat-resisting steels). -
Circular saw blade suitable for cutting general mild steel materials.
Edge material specifications
Uses cermet tips with excellent wear resistance and deposition resistance.Target materials
Excellent in chipping resistance and suited for cutting a wide range of materials such as structural carbon steels, structural alloy steels and pipes. -
Circular saw blade suitable for cutting general mild steel materials such as structural steel.
Edge material specifications
Uses cermet tips with excellent wear resistance and deposition resistance.Target materials
Stable life and cutting quality is provided with cutting structural carbon steels and structural alloy steels up to C ≤ 0.45%. -
Thick blade capable of cutting a curved contour under harsh cutting conditions.
Developed for auto contour curve cutting under harsh cutting conditions
This model is the thicker version of A.
It features AMADA’s unique tooth profile design with a 5˚ positive rake angle in the same fashion as A. Long-lasting excellent sharp cutting is ensured. -
Versatile carbon contour blade available in different sizes.
Versatile contour blade with the longest history and heritageThis is a contour blade made of AMADA’s original material with special heat treatment.
This model has a much wider variety of sizes compared to other manufacturers’ products.
It is suitable for not only metal materials but also lumber and plastic materials. -
Bi-metal contour blade made of high speed steel and designed for cutting difficult-to-cut materials.
Bi-metal blade developed for contour machines
“No breakage, no bend and long-lasting sharp cutting” – three requisites essential to blades for contour cutting of various steel materials
AMADA’s original tungsten high speed steel for the blade teeth and tough special spring steel for the blade body
-
Blade suitable for cutting general steel, cast iron and nonferrous metal materials with small diameters
Blade body with improved fatigue strength.Blade tooth tips made of AMADA’s original special alloy tool steel
AMADA’s proprietary heat treatment technology for improving the fatigue strength of the blade body
Suitable for cutting materials with small diameters, such as general steel, cast iron, nonferrous metal and tool steel materials that may cause a high degree of cutting resistance
-
Blade suitable for cutting general steel, cast iron and nonferrous metal materials with small diameters.
Blade tooth tips made of AMADA’s original special alloy tool steel
AMADA’s proprietary heat treatment technology to give unparalleled toughness and hardness to carbon blades
Suitable for cutting general steel, cast iron and nonferrous metal materials with small diameters
Bandsaws, Circular Saws, and Sawing Machines
We provide high-quality bandsaw machines from Amada, a Japan manufacturer. They also provide Circular Saws and Sawing machines.
-
High-speed cutting
The pulse cutting technology reduces cutting resistance thereby minimizing blade teeth wear. The double column guide installed to the high rigidity frame makes a contribution to high speed cutting performance.
Longer blade life
The network-based CNC controller is introduced in combination with the hybrid real time cutting control. Optimum cutting database supports high speed cutting and increases a blade life.
Minimized inclusion of chips
Our new 3D double wire brush design significantly increases chip-blade separation performance in removing chips from the blade, which increases a blade life and minimizes chip inclusion.
Efficient chip ejection
This machine model is equipped with a built-in wide chip conveyor. Improved frame construction and obstruction-free space underneath the chip generation area are advantageous for efficiently ejecting a large volume of chips generated from the high speed cutting process.
Back gauge function
Our back gauge function built in this model has gained popularity among users. The feeding vise can be used as a back gauge for facilitating the cutting of remnants to produce shorter products. This model is designed to cut up to 95mm or 35mm with the optional back gauge jig.
-
Integrated console
The operation panel is no longer located in a moving area but is integrated with the control panel, which allows a user to remotely control main functions.
The integrated construction further increases electrical maintainability.NC programming function
This function allows a user to program a cutting method and the number of pieces as desired. The maximum 99 patterns can be programmed.
The embedded self-diagnosis function will indicate an error code if a trouble is detected.Proximal light
This light is helpful for proper operation in the area close to the blade.
Automatic end positioning
CNC-controlled band saw’s popular function is available as an optional function to eliminate the need of hassle scale matching work on the shop floor.
High-rigidity construction
The post type construction gives higher rigidity than the hinge type. -
Band saw machine compatible with AXCELA blade
This band saw machine model offers the same basic specifications and operability as PCSAW-430X/530X except that this CNC-controlled band saw machine model is compatible with cutting the conditions of the AXCELA blade and can maximize the capability and performance of the AXCELA high performance carbide blade.
Tooth tip protection
The material relief function is available as a standard function to prevent the interference of teeth tips with a target cut surface. For the purpose of preventing tooth chipping, this function commands the feed vise to give a rearward relief to a material when the blade is lifted upon completion of the cutting process.
High speed cutting
High speed cutting is assured by a combination of lower cutting resistance achieved by the pulse cutting technology and high rigidity frame constructed with the double column guide.
Cutting feed controlled by servo motor
Cutting feed controlled by a servo motor allows for precise, powerful cutting at a high cutting rate.
High-power blade motor
The powerful blade motor yields a higher cutting rate.
For higher power output, PCSAW-430AX and PCSAW-530AX are driven by 11kW and 15kW high power blade motors respectively.Back gauge function
Our back gauge function built in this model has gained popularity among users. The feeding vise can be used as a back gauge for facilitating the cutting of remnants to produce shorter products. This model is designed to cut up to 95mm or 35mm with the optional back gauge jig.
-
Automatic sizing cut for forged large materials
Major change made to a conventional automatic feeder allows for automatic sizing cut for forged large materials (materials having an uneven surface).
PF valve
The cutting process can be optimized just by setting up the PF valve to the target “material, shape and size”.
NC programming function
This function allows a user to program a cutting method and the number of pieces as desired. The maximum 99 patterns can be programmed.
The embedded self-diagnosis function will indicate an error code if a trouble is detected.Full stroke vise
A full stroke type of vise cylinder was introduced to allow for clamping just by pressing a single button regardless of a change in material width. -
High speed cutting
The pulse cutting technology reduces cutting resistance thereby minimizing blade teeth wear. Moreover, this new pulse unit enables to reduce noises.Band saw machine compatible with AXCELA blade
This CNC-controlled band saw machine model is compatible with cutting the conditions of the AXCELA blade and can maximize the capability and performance of the AXCELA high performance carbide blade.Longer blade life
The network-based CNC controller is introduced in combination with the hybrid real time cutting control. Optimum cutting database supports high speed cutting and increases a blade life.Improvement of work environment
Powerful Prevent Vibration Roller reduces both chattering vibrations and cutting noises.Operation panel suited for user’s work environment
The separately installed stand-alone main operation panel can fit in your work space and layout. The portable sub operation panel (option) is available to allow a user to remotely control work processes easily at a distance from the main operation panel.
Improvement of workability
Inclination of chip conveyor adopting +15°of angle to reduce the volume of cutting oil adheres cutting chips flowing out.
Adopting laser-type quick approach facilitate aligning the cutting position of the material, and setup positioning of the approach speed selection.
Creating wider gaps between the rollers. This idea improves the workability of loading up and down by mounting wire through between the rollers.Selective cutting stop height setting
A cutting stop height setting can be selected from two options: “stop height” and “cutting depth.” The “stop height” setting determines an uncut length and the “cutting depth” setting determines a cutting depth.
-
Selective cutting height
A cutting height setting can be selected from either 600mm (standard) or 1000mm (optional) depending on the application and material size.Larger blade size
A larger blade size of 67mm x 1.6mm is used in contrast with conventional models.Further larger model
VM-6500 is available as a special model characterized by a table stroke of 6500mm and capability of cutting large materials.Use of servo motor and linear guide
An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.Automatic adjustment of guide position
Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.Automatically adjustable wire brush
Wire brush contact is automatically adjusted in proportion to wear of wire brush.
A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.Excellent operability
The color display and touch panel facilitate operation.
The embedded CNC-Lite function automatically sets optimum cutting conditions.Permissible loading mass
In response to a trend toward larger materials, the machine table offers 12000kg loading mass. -
Middle blade guide
The world’s first middle blade guide eliminates blade chattering during the cutting of wide materials.
Minimizes blade deviation.10° inclined blade
The shortest possible cutting length of the blade for wide material cutting underpins high speed cutting without any load on the blade.
Movable front vise
The front vise can travel 240mm and go in over the blade, which facilitate cut alignment and remnant ejection.
Stand type operation panel
The swivel stand type operation panel further increases workability and operability in the cut alignment stage.
Chip conveyor
A large-diameter chip conveyor is installed as a standard component to improve the work environment. -
High quality machine capable of cutting large and difficult-to-cut materials
Compact-size design with capability of cutting as large materials as 800 x 700mm.
This high performance model offers excellent accuracy and durability to cut difficult-to-cut materials.Front-oriented control/semi-automatic function
With an absolute focus on workability and productivity, all operations start from the front side of the machine such as setting cutting conditions, feeding materials and positioning.Blade deviation monitor contributory to quality of workpieces
The machine will automatically stop running if blade deviation exceeds a permissible limit setting. This prevents blade damage and non-conforming products.Cutting dept setting function allowing for easy cutting of large materials
This function allows for cutting to a predetermined cutting depth setting, which facilitates tooling and dovetail grooving.
-
Integrated console
The operation panel is no longer located in a moving area but is integrated with the control panel, which allows a user to remotely control main functions.
The integrated construction further increases electrical maintainability.NC programming function
This function allows a user to program a cutting method and the number of pieces as desired. The maximum 99 patterns can be programmed.
The embedded self-diagnosis function will indicate an error code if a trouble is detected.Proximal light
This light is helpful for proper operation in the area close to the blade.
Automatic end positioning
CNC-controlled band saw’s popular function is available as an optional function to eliminate the need of hassle scale matching work on the shop floor.Availability of wide blades (optional)
Selecting a wider blade can further increase cutting speed.
HFA-250:Blade width increased from 27mm to 34mm
HFA-400:Blade width increased from 34mm to 41mm -
Full-stroke vise cylinder
The vise can be operated just by using a push button. Compared to the conventional rack type, labor and time can be saved significantly.
There is a function that slightly opens the feeding/holding vise by some millimeters when feeding material in order to prevent scratches to materials and dimensional errors.Twist-up roller
The twist-up roller located in the insert area prevents uneven insert wear and protects the blade.
-
PF valve
The cutting process can be optimized just by setting up the PF valve to the target “material, shape and size”.
Cutting depth setting unit
The blade descends horizontally. Tooling and dovetail grooving can be easily handled by adjusting a cutting end height.
Lever type insert clamp
A foolproof lever type insert clamp is installed to the guide bracket.
Motor-driven Coolant pump
A motor-driven centrifugal pump was introduced in this model, rather than a conventional gear pump. Cutting fluid can be used and cleaned regardless of whether the main motor is ON or OFF.
Vise mechanism
Vise jaws are located on both the front and the rear sides of the blade in a well-balanced manner in order to properly feed and hold materials. This vise mechanism is capable of properly clamping small materials.
-
High quality machine capable of cutting large and difficult-to-cut materials
Compact-size design with capability of cutting as large materials as 800 x 700mm.
Programmable cutting in line with automation of cutting process
The embedded “F function” guarantees flexible automatic operation and requires only simple data entry through the numeric pad to automatically cut the predetermined number of workpieces at 99 stations.
Blade deviation monitor contributory to quality of workpieces
The machine will automatically stop running if blade deviation exceeds a permissible limit setting.
Featured Products
-
Product Features
High strength, Heat treated alloy steel body for better life.
Hard chrome plated ram to resist scoring and corrosion.
Single acting load return. Precise machined body for smooth operation.
Wiper to arrest ingress of foreign particles.
Easy adjustable toe fixing positions for different heights and strokes.
Grooved toe to avoid load slippage.
Custom strokes available on request.
High pressure long life seals. QCC with Plastic dust cap. Aluminium Dust Cap on Request.
Advantage to use single or multiple jack with common pump.
Adjustable legs for extra grip. Castor wheels for easy mobility in new version.
Port size 3/8th inch NPT. -
Cut off tube protrusion easily!
The “Facing Tool” is a tube end facing tool for keeping tube protrusion uniform.
Two types of cutters are available depending on the tube end shapes, one for flat surfaces and the other for round surfaces. -
Ideal for tube end curling!
EXP_FB The “Tube Expanders FB” are rolling type tube expansion tools used for fixing tubes to tube sheets during the manufacturing process for heat exchangers.
Since it can perform parallel tube expansion and curling simultaneously, processing time can be greatly reduced.
Special five-roller type
-
Fully automatic tube end facing!
The “Power Facer” is a pneumatic, tube end facing tool for finishing the ends of tubing into various shapes during the manufacturing process for heat exchangers.
Just press the switch to perform tube end finishing. There is no reaction force involved in the process, significantly reducing worker fatigue. -
OSD Series Hydraulic Torque Wrenches
FEATURES
One-piece Forming Machine body made of aluminum titanium alloy, high strength, high tenacity and design to exert torque on toughest for a smaller operating radius.
Orbit-X hydraulic torque wrenches are one of the most advanced tools in the industry. Some of the features of Orbit-X hydraulic torque wrenches are as below: Accuracy in repeatability, Very few moving parts, Fast stoke & designed to fit each application. Orbit-X manufactures two series of Hydraulrenches as fic Torque Wollows: -
Orbit-X Electric Torque Wrenches are operated by inbuilt Electric geared motor (single phase). Torque can be pre-set within the torque range provided by the model the pre-set torque gets delivered on the nut. Orbit-X has variety of Electric Torque Wrenches for various Square drive sizes, RPM & Torque.
-
