Fiber core material: PMMA
Cladding material: PE
Number of fibers: 2, 4, 6, 12, 24
Fiber OD: 0.75mm/1.0mm

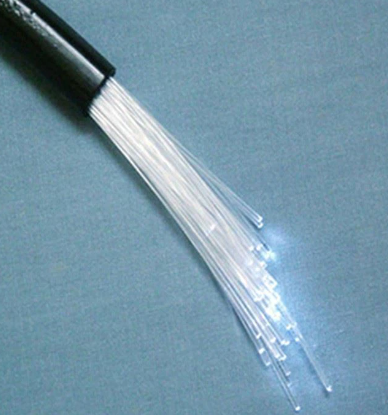

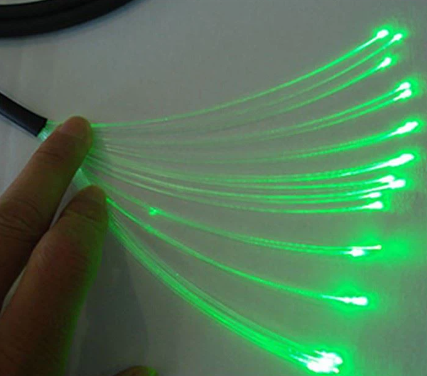

PMMA Multi Strand End Glow Fiber Optic Cable
Description
Multi strand end glow fiber cable, PMMA optic fiber cable multi strands with black PE PVC jacket
Specifications
Fiber core material: PMMA
Cladding material: PE
Number of fibers: 2, 4, 6, 12, 24
Fiber OD: 0.75mm/1.0mm
Cable OD: custom
Light source: LED or Halogen
Attenuation: ≤180 dB/km
Features
UV protection , Water proof
Cold light source , non-ultraviolet , without the acceleration of valuable .
Close coupling, high illumination, stable attenuation .
Separation of light and electricity , Cut at will .
Application
Indoors illumination
Outdoors lighting
Related products
-
TX’s plastic optical fiber products, are highly reliable transmission with low attenuation and excellent noise-resistant characteristics.
-

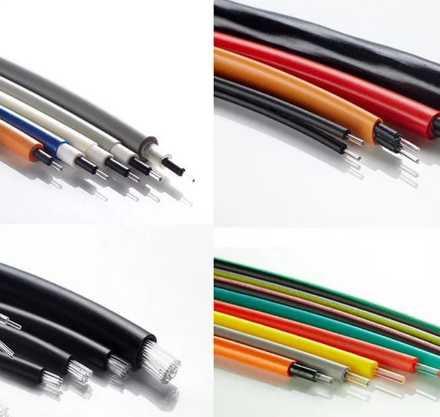

Name: Plastic optical fiber cable, UL POF, multi-core POF, for data and lighting Plastic fiber (POF) is made of highly transparent polymers such as polystyrene (PS), polymethyl methacrylate (PMMA), polycarbonate (PC) as the core material, PMMA, fluorine plastics as the cortex material of a kind of optical fiber (optical fiber). Excellent short distance data transmission medium.
-
Plastic fibers are light, soft and more resistant to damage (vibration and bending). Plastic fiber has excellent tensile strength, durability and small footprint. These advantages make the successful application of plastic optical fiber in automobile especially important. A typical luxury car interior consists of at least a few kilometers of copper wire and copper cable, greatly increasing the weight and cost. The same is true of planes, trains and all other forms of transportation.
