Name: Plastic optical fiber cable, UL POF, multi-core POF, for data and lighting Plastic fiber (POF) is made of highly transparent polymers such as polystyrene (PS), polymethyl methacrylate (PMMA), polycarbonate (PC) as the core material, PMMA, fluorine plastics as the cortex material of a kind of optical fiber (optical fiber). Excellent short distance data transmission medium.

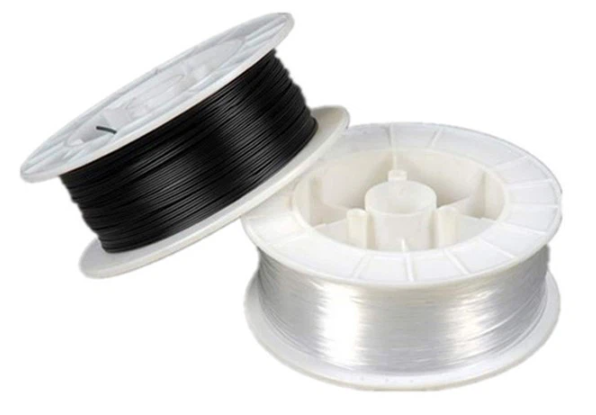

Multi-Strands PMMA Fiber Cable
NewDescription
Name: Basic simplex and duplex plastic optical fiber cable
Inner fiber OD: 1.0 mm
Fiber core material: PMMA
Outer diameter: 2.2mm/4.4mm
Outer jacket material: PE,PVC,TPU,TPE,optional
Working Temperature: -55-+85
Application: For industrial control data transmission and illumination
Outer color: Black
Fire Rating: ULVW-1
Certification: REACH,UL certificate,ROHS
Features for the whole communication POF cable
The characteristics of plastic optical fiber for data transmission
●Low cost for maintenance, saving copper resource.energy-saving
and environment protection.
●Immune to electromagnetic wave radiation, no noise effect ,good
capacity of resisting disturbance.
●Low weight. flexible. high resist flutter and determinate cleavage,
durability.
●High bandwidth, high speed, good performance.
●High privacy protection, reliable safety.
●Optimum bandwidth, high speed, good performance.
●Close coupling, high illumination, stable attenuation.
●Easy installation, needlessness for special tools and fusion welding. and
cut at will by your request
●Waterproof, dampproof, antimagnetic, free of magnetic and thunders.
The application of data transmission POF cable
Applied in high-fast data transmission, FTTH, intelligent network of home and office,automobile,intelligence,industry control and monitor system, military communication, media,medical etc
