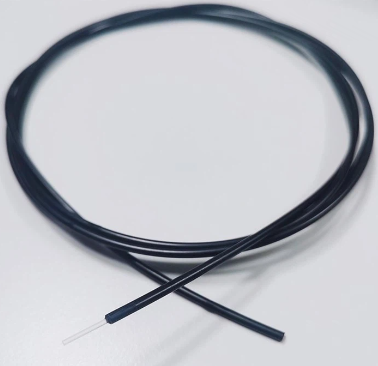

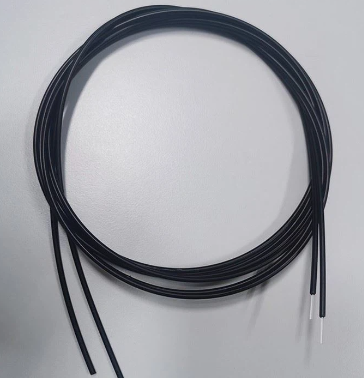

This is a type of UL VW-1 flame retardant fiber cable Meets or exceeds specifications for GHV4001 Diameter 1.0mm*2.2mm
Fire Resistant Fiber Optic Cable
NewDescription
Specifications
Configuration: Simplex
Core Diameter: 1.0mm
Core Material: PMMA
Jacket Diameter: 2.2mm
Jacket : fire resistant PVC
Numerical Aperture: 0.5
| Transmission Loss | @ 650nm Collimated Light | ≤170 dB/km |
| Tensile Strength | Tensile Force at 5% Elongation | 70 N |
| Temperature | Storage/ Operation Temperature | -40~+75℃ |
| Minimum Bend Radius | Loss Increment <0.5 dB | 25 mm |
| Impact Endurance | Loss Increment <1 dB | 0.4 N.m |
| Repeated Bending Endurance | Loss Increment <1 dB | 5000 times |
| Twisting Endurance | Tensile Force: 4.9 N ,Loss Increment <1 dB | 5 times |
| Flame Rating | Flame resistance | UL758 VW-1 |
| Standard | UL758 、 ROHS 、REACH 、
YD/T 1258.6-2006 、YD/T 1447-2013 、 GB/T 12357.4-2004 、JIS C. 6861 |
|
Application:
Network communication, Industrial communication, Industrial control, sensing, Mutual inductor, High and low voltage frequency converter, Electric control cabinet, Consumer electronics.
