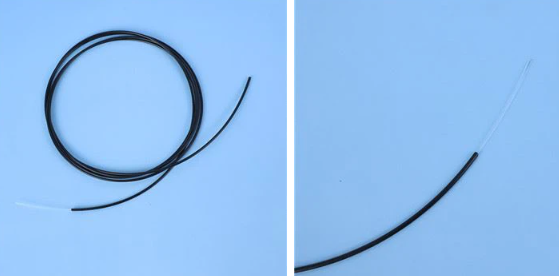

This 1.0mm/ 2.2mm POF cable is widely used in industrial communication and lighting designs, The black PE jacket protect the fiber in application, but also it can be removed to show the fiber for a lighting design. This general cable is very practical with a very good price . We can provide it with roll packing or cutting according to requested lengths.
End Emit PMMA Optic Fiber Cable
NewDescription
Specifications
Fiber core material: PMMA
Sheath material: PE, it can be customized to a clear clad etc.
Number of fiber: 1
Fiber OD: 1mm
Cable OD: 2.2mm
Approximate Weight: 4.0 g/m
Product code: TX-CC1000-1B
Attenuation: ≤200 dB/km
Details
| Item | Unit | Specification | |
| Structural parameters | Core diameter | μm | 980±60 |
| Cladding diameter | μm | 1000±60 | |
| Cable diameter | mm | 2.2±0.07 | |
| Numerical Aperture | NA | 0.5±0.15 | |
| Approximate Weight | g/m | 4.0 | |
| Optical properties | Transmission Loss(at 650nm) | dB/km | ≤200 |
| Mechanical Characteristics | Tensile Strength | N | 65 |
| Minimum Bend Radius | mm | 25 | |
| Impact Endurance | dB | ≤0.2 | |
| Repeated Bending Endurance | dB | ≤0.2 | |
| Twisting Endurance | dB | ≤0.2 | |
Applications
Industrial communication control or sensing , Toslink fiber audio cable
Lighting or illumination purpose
