The optical fiber itself is transparent and does not emit light. It emits light through its both ends and LED spotlights.
6.0 Mm PMMA Side Glow Fiber Optic
Description
Specifications
TX-SFL-6000, 6.0mm MMA side glow optical fibers, 100meters per roll
Fiber material: MMA
Fiber color: transparent
Luminous form: side glow, whole body glow
Luminous conditions: requires light source engine, illuminate from the end (the light source engine is purchased separately)
|

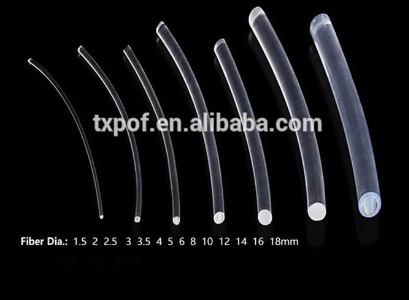

Part NO. | Diameter (mm) |
Spool length (meters) |
tolerance (mm) |
remarks |
| TX-SFL-1500 | 1.5 | 100 | ±0.20 | common bright | |
| TX-DSFL-1500 | 100 | ±0.20 | super bright | ||
| TX-SFL-2000 | 2.0 | 100 | ±0.20 | common bright | |
| TX-DSFL-2000 | 100 | ±0.20 | super bright | ||
| TX-SFL-2500 | 2.5 | 100 | ±0.20 | common bright | |
| TX-DSFL-2500 | 100 | ±0.20 | super bright | ||
| TX-SFL-3000 | 3.0 | 100 | ±0.20 | common bright | |
| TX-DSFL-3000 | 100 | ±0.20 | super bright | ||
| TX-SFL-4000 | 4.0 | 100 | ±0.20 | common bright | |
| TX-DSFL-4000 | 100 | ±0.20 | super bright | ||
| TX-SFL-5000 | 5.0 | 100 | ±0.20 | common bright | |
| TX-DSFL-5000 | 100 | ±0.20 | super bright | ||
| TX-SFL-6000 | 6.0 | 100 | ±0.20 | common bright | |
| TX-DSFL-6000 | 100 | ±0.20 | super bright | ||
| TX-SFL-8000 | 8.0 | 100 | ±0.30 | common bright | |
| TX-DSFL-8000 | 100 | ±0.30 | super bright | ||
| TX-SFL-10000 | 10.0 | 100 | ±0.30 | common bright | |
| TX-DSFL-10000 | 100 | ±0.30 | super bright | ||
| TX-SFL-12000 | 12.0 | 100 | ±0.30 | common bright | |
| TX-DSFL-12000 | 100 | ±0.30 | super bright | ||
| TX-SFL-14000 | 14.0 | 100 | ±0.30 | common bright | |
| TX-DSFL-14000 | 100 | ±0.30 | super bright | ||
| TX-SFL-16000 | 16.0 | 100 | ±0.30 | common bright | |
| TX-SFL-18000 | 18.0 | 100 | ±0.50 | common bright |
Luminous Principle:

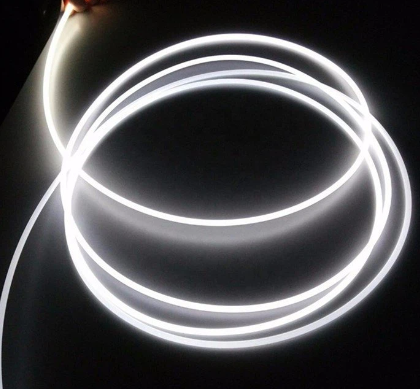

The optical fiber itself is transparent and does not emit light. It emits light through its both ends and LED spotlights. The light is transparent and the brightness is not dazzling. The color changes according to the color of the LED light source. When the light is not turned on, it is transparent, which is better than all kinds of cold light with color. There is no driven current sound, and the service life is longer.
Features:
-Fiber optic lamps are energy-saving, new-style lamps that can be artistically shaped.
-It integrates high-brightness side-emitting plastic optical fiber filaments into one bundle, and one or both ends are equipped with high-brightness colorful sources. Under the action of electronic control devices, it can change different colors.
-The decorative lamps and lanterns made with it are widely used in car interiors, new home decoration, hotels, bars, clubs, festive evenings, wedding banquets, building wall and surface lighting decoration.
-Colorful, fashionable and gorgeous, dynamic, noble and elegant. Because of power saving, it is durable.
