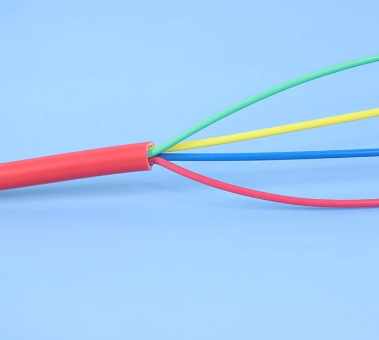

4 Core Fiber Optic Cable

Product information

4 core fiber optic cable is one kind of multi-core POF cable , with two directions , it can be used in sensors or lighting . Normally just one difference between them,for sensors application, like fault indicator, every fiber will be coated with PE jacket first, then all of them will be coated in PVC or other material outer jacket.  But for lighting designs, all fibers are clad in one jacket, then it is easy for the process of cutting, stripping and showing the sparkle of fiber’s body. Besides, for communication, the jacket is black or colorful, and for illumination, the jacket is mostly black or clear (Transparent).

Specification

4 core plastic fiber optic cable in Sensors & Communication
Fiber: 1.0mm
Inner Cable: 2.2mm * 4
Outer Cable: 8.0mm halogen free material
Attenuation: 180/200 dB/Km
4 core plastic fiber optic cable in Lighting & Illumination
Fiber: 1.0mm * 4
Cable: 4.0mm UV protection is available for clear cladding
Attenuation: 180/200 dB/Km

Details of advantage

– Easy installation and cut at will
– Low cost and low weight
– Maintenance-free
– Nonconducting and no heat

About Fiber optic

We produce our cables with Japanese fibers, Toray PK PG series and Mitsubishi eska series. Strict quality control and continuous customer services make us out of the ordinary in this market.

Popular item’s presentation

Big diameters of solid core optic fiber with black PVC jacket

Customized solutions

– Designing
– Cutting
– Stripping
– Assembling
– Packing
