Easy to install and connect, maintenance easy;
Heat and cold resistant(-20~70ºC);
Light in weight, energy saving and safe;
2.2 Mm POF Cable Stripped Color
Description
Specifications
| Model | Fiber dia. (mm) | Cable dia. (mm) | Coil length(m) | Color |
| CC1000-1BY | 1.0±0.06 | 2.2±0.1 | 1500 | yellow |
| CC1000-1BG | green | |||
| CC1000-1BR | red | |||
| CC1000-1YR | red | |||
| CC1000-1YG | green | |||
| CC1000-1RG | green |
Technical Parameters
| Parameters | Unit | Numerical value |
| Fiber material | — | PMMA/Fluororesin |
| Jacket material | — | PE |
| Attenuation | dB/m | ≤0.18 |
| NA | — | 0.5 |
| Wavelength | nm | 650 |
| Incident angle | — | ≤60° |
| Bandwidth | MHz· 100m | ≥10 |
| Bend radius | — | ≥10times of fiber diameter |
| Operating temperature | ºC | -40~85 |
| Storage temperature | ºC | -40~85 |
| Refractive index | — | Step index |
Features
Easy to install and connect, maintenance easy;
Heat and cold resistant(-20~70ºC);
Light in weight, energy saving and safe;
High bandwidth, excellent flexibility, vibration resistance;
Anti-electromagnetic interference, stable and reliable signal transmission;
Comply with YD/T 1447-2006 and YD/T 1258.6-2006, the state communications industry standard;
Applications
Power system;
Sensor signal transmission;
Industrial control signal transmission;
Audio signal transmission;
Special LAN or access network;
Auto multimedia signals or control signal transmission;
Military Equipment.
Related products
-

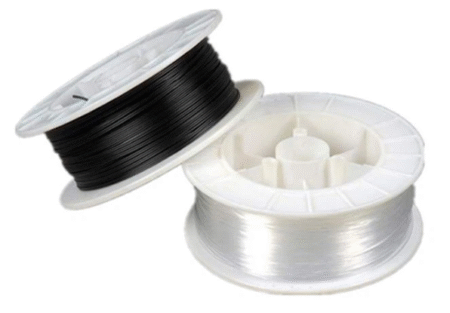

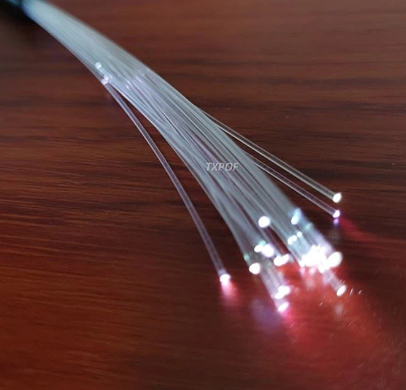

PMMA fiber, also known as plastic optical fiber (POF). It’s a kind of fiber made from polymer. Light is transmitted by reflection in optical fibers.
-
Name: Plastic optical fiber cable, UL POF, multi-core POF, for data and lighting Plastic fiber (POF) is made of highly transparent polymers such as polystyrene (PS), polymethyl methacrylate (PMMA), polycarbonate (PC) as the core material, PMMA, fluorine plastics as the cortex material of a kind of optical fiber (optical fiber). Excellent short distance data transmission medium.
