This optical fiber has a high-purity 0.5 mm PMMA core with specially selected transparent polymer cladding. The core and cladding are surrounded by a 1.0 mm polyethylene ( PE ) jacket.

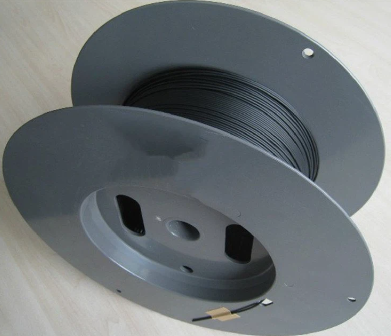

1 Mm Single Core Plastic Optical Fiber Cable
NewDescription
Plastic optical fiber cable – Cable diameter 1.0mm simplex POF cable, with OD 0.5mm low attenuation fiber for Industrial control communication transmission.
Product details:
| Fiber core material | PMMA |
| Fiber cladding material | Fluorinated Polymer |
| Core refractive index | 1.492 |
| Numerical aperture | 0.5 |
| Outer jacket material | PE |
| Fiber diameter | 0.5mm |
| Outer diameter | 1.0mm |
| Minimum bend radius | 10mm |
| Attenuation | ≤200 dB/km |
| Working temperature | -55°C to 85°C |
This optical fiber has a high-purity 0.5 mm PMMA core with specially selected transparent polymer cladding . The core and cladding are surrounded by a 1.0 mm polyethylene ( PE ) jacket .
Feature
1. Low cost for maintenance, saving cooper resource, energy-saving and environment protection.
2.Immune to electromagnetic wave radiation, no noise effect, good capacity of resisting disturbance.
3. Low weight, flexible, high resist flutter and determinate cleavage, durability.
4. High bandwidth, high speed, good performance.
5. High privacy protection, reliable safety.
6. Optimum bandwidth, high speed, good performance.
7. Close coupling, high illumination, stabile attenuation.
8.Easy installation, needlessness for special tools and fusion welding, and cut at will by your request.
9. Waterproof, Dampproof, Antimagnetic, free of magnetic and thunders
Application
1. FTTH (fiber to home)
2. Consumer electronics
3. Automobile intelligence
4. Industry control and monitor system
5. Military communication
Other products :

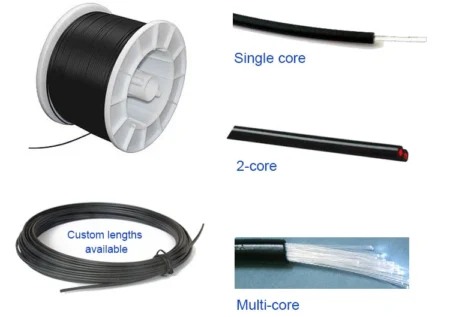

– Duplex POF cable
– Full color POF cable
– POF cable striped color
– Multi-core fiber cable
