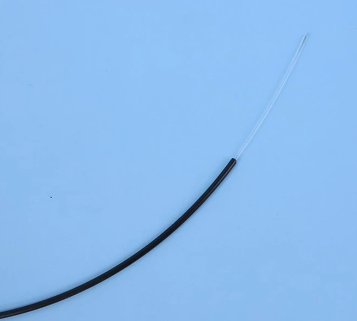

This fiber cable used for industrial sensor with outer diameter 1.3mm. The inner fiber we use is imported from Japan to guarantee low attenuation ≤180dB/Km.
1.3 Mm Industrial Fiber Optic Sensors
NewDescription
Description:
This fiber cable used for industrial sensor with outer diameter 1.3mm. The inner fiber we use is imported from Japan to guarantee low attenuation ≤180dB/Km.
Parameter:
1. Item: 1A/1.3
2. Spec: ID:1.0mm,OD:1.3mm
3. Jacket color: Black

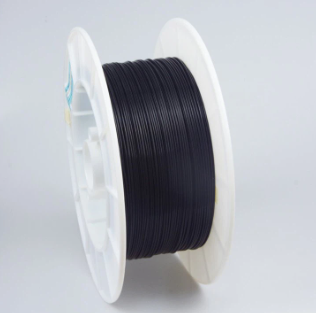

4. 1000 Meters/spool
5. Attenuation: 180db/km
6. Jacket material: PE
7. Fiber material: PMMA
Application:
Industrial control,automated sensing,Industrial communication with high communication requirement.
Power system, sensor signal transmission,audio and video signal transmission;
Lighting ,semiconductor manufacturing equipment.
Display light guide communication jumper,etc.
PLASTIC OPTICAL FIBER CABLES
We have our own brand “TXPOF”, and we also have cooperation with Toray/Avago/Mitsubishi. Below are some of our product list for your reference.
| Model | Core diameter (mm) |
OD (mm) |
Attenuation (dB/km) |
Jacket Material | length/roll （meter） |
Temperature （℃） |
| TX-CC0500-1B | 0.5mm×1 | 1.0mm±0.15 | ≤250 | PE | 1500/5000 | -55~85 |
| TX-CC0500-1B/1.25 | 0.5mm×1 | 1.25mm±0.15 | ≤250 | PE | 1500/5000 | -55~85 |
| TX-CC0750-1B | 0.75mm×1 | 2.2mm±0.07 | ≤200 | PE | 2500 | -55~85 |
| TX-CC1000-1B/1.25 | 1.0mm×1 | 1.25mm±0.15 | ≤200 | PE | 1500/5000 | -55~85 |
| TX-CC1000-1B | 1.0mm×1 | 2.2mm±0.07 | ≤200 | PE | 2500/5000 | -55~85 |
| TX-CC1000-1A | 1.0mm×1 | 2.2mm±0.07 | ≤180 | PE | 2500/5000 | -55~85 |
| TX-CC1500-1/3.0 | 1.5mm×1 | 3.0mm±0.1 | ≤240 | PE/PVC | 700 | -55~85 |
| TX-CC2000-1/3.8 | 2.0mm×1 | 3.8mm±0.1 | ≤240 | PE/PVC | 350 | -55~85 |
| TX-CC3000-1/4.5 | 3.0mm×1 | 4.5mm±0.1 | ≤240 | PE/PVC | 150 | -55~85 |
| TX-CC3000-1/5.0 | 3.0mm×1 | 5.0mm±0.1 | ≤240 | PE/PVC | 150 | -55~85 |
| TX-CC1000-2B | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤200 | PE | 1250 | -55~85 |
| TX-CC1000-2A | 1.0mm×2 | 2.2/4.4mm±0.1 | ≤180 | PE | 1250 | -55~85 |
| TX-CC1000-2B/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC | 500 | -55~85 |
| TX-CC1000-2A/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC | 500 | -55~85 |
| TX-CC1000-2C/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC | 300 | -55~85 |
| TX-CC1000-2B/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC | 300 | -55~85 |
| TX-CC1000-2KB/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤200 | PE+PVC+kevlar | 300 | -55~85 |
| TX-CC1000-2KA/6.0 | 1.0mm×2 | 2.2/4.4/6.0mm | ≤180 | PE+PVC+kevlar | 300 | -55~85 |
| TX-CC1000-1BV | 1.0mm×1 | 2.2mm±0.07 | ≤200 | VW-1 | 2500 | -55~85 |
| TX-CC1000-1AV | 1.0mm×1 | 2.2mm±0.07 | ≤180 | VW-1 | 2500 | -55~85 |
| TX-CC1000-2BV | 1.0mm×2 | 4.4mm±0.1 | ≤200 | VW-1 | 1250 | -55~85 |
| TX-CC1000-2AV | 1.0mm×2 | 4.4mm±0.1 | ≤180 | VW-1 | 1250 | -55~85 |
| TX-CC1000-1B/4.0 | 1.0mm×1 | 4.0mm±0.1 | ≤200 | PE+PVC | 1000 | -55~85 |
| TX-CC1000-1B/5.0 | 1.0mm×1 | 5.0mm±0.1 | ≤200 | PE+PVC | 500 | -55~85 |
Related products
-
New
Applied in high-fast data transmission,FTTH,intelligent network of home and office,automobile,intelligence,industry control and Monitor system, Military communication, etc.
-
New
-
New

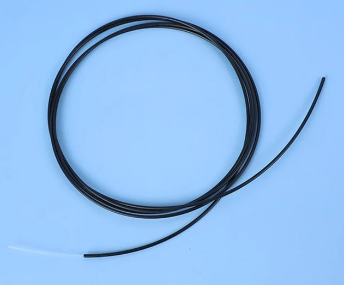

This is a kind of polymer optic fiber cable, it is made of PMMA and PE or PVC black jacket/coating, which is mainly used for short distance data transmission or lighting. Applications Main products Communication Simplex POF Industrial control TOCP100/200/255, Avago HFBR series patch cord.
-
