Sugino Machine has a wide range of tools and equipment that can perform fixing tubes to tube sheets, during heat exchanger and steam condenser maintenance work.
-
-
Ideal for cost reduction and quality improvement!
EXP_ECO The “Eco Tube Expanders” is a rolling type tube expansion tool used for fixing tubes to tube sheets during the manufacturing process for heat exchangers.
With Sugino’s original metal surface improvement treatment, tube expansion can be performed without lubrication, achieving cost reduction and surface quality improvement at the same time.Special three-roller types: MB-W Type, CB-W Type, HB-W Type
Special five-roller type: CB-E5W Type -
Cut off tube protrusion easily!

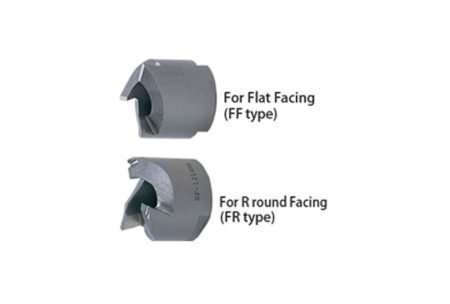

The “Facing Tool” is a tube end facing tool for keeping tube protrusion uniform.
Two types of cutters are available depending on the tube end shapes, one for flat surfaces and the other for round surfaces. -
Ideal for tube end curling!
EXP_FB The “Tube Expanders FB” are rolling type tube expansion tools used for fixing tubes to tube sheets during the manufacturing process for heat exchangers.
Since it can perform parallel tube expansion and curling simultaneously, processing time can be greatly reduced.
Special five-roller type
-

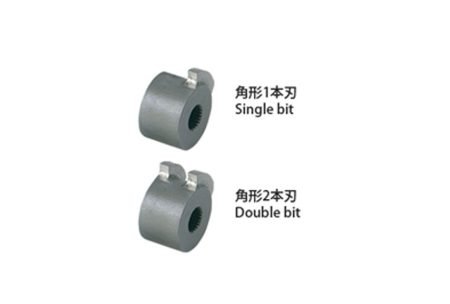

Perfect for cutting circular grooves on inner holes! The “Grooving Tool” is used for cutting circular grooves on the inner surface of tubing, and for chamfering hole edges. Two types of rectangular cutters are available, one with a single blade and the other with a double blade.
-
Reduces tube expansion time significantly!
The “High-speed Tube Expander” is a rolling type tube expansion tool used for fixing tubes to tube sheets during the manufacturing process for heat exchangers.
By making the feed angle larger, we made it possible to shorten the tube expansion time significantly.
Special three-roller types: MB-V Type, CB-V Type, HB-V Type
Special five-roller type: CB-VE5 Type (five-roller type) -
-
Expands even 5 m tubes uniformly!
The “Long Reach Tube Expanders LHB” are rolling type tube expansion tools used for fixing tubes to tube sheets during the manufacturing process for heat exchangers.
Suitable for expanding tubes in large heat exchangers and baffle plates, they can be manufactured with a maximum length of up to 5 m. -
Fully automatic tube end facing!

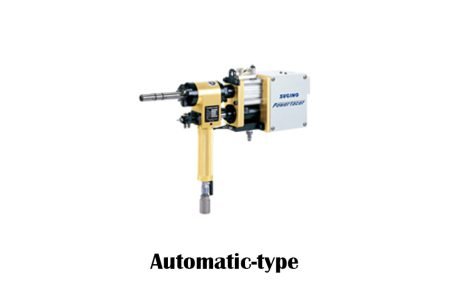

The “Power Facer” is a pneumatic, tube end facing tool for finishing the ends of tubing into various shapes during the manufacturing process for heat exchangers.
Just press the switch to perform tube end finishing. There is no reaction force involved in the process, significantly reducing worker fatigue. -
Simple tube expansion even for tube ends!
“Tube End Forming Tube Expanders” are rolling type tube expansion tools used for expanding tube ends.
Special four-roller type
-
-
-
-
-
-
Easily polish expanded tubing!
The “Tube Polisher” is an exterior polishing tool for polishing the outer surface of expanded tubing during the manufacturing process for heat exchangers.
A highly-efficient air motor rotates/revolves the abrasive belt, providing a uniform, efficient polishing of the outer surface with the tube fixed.
